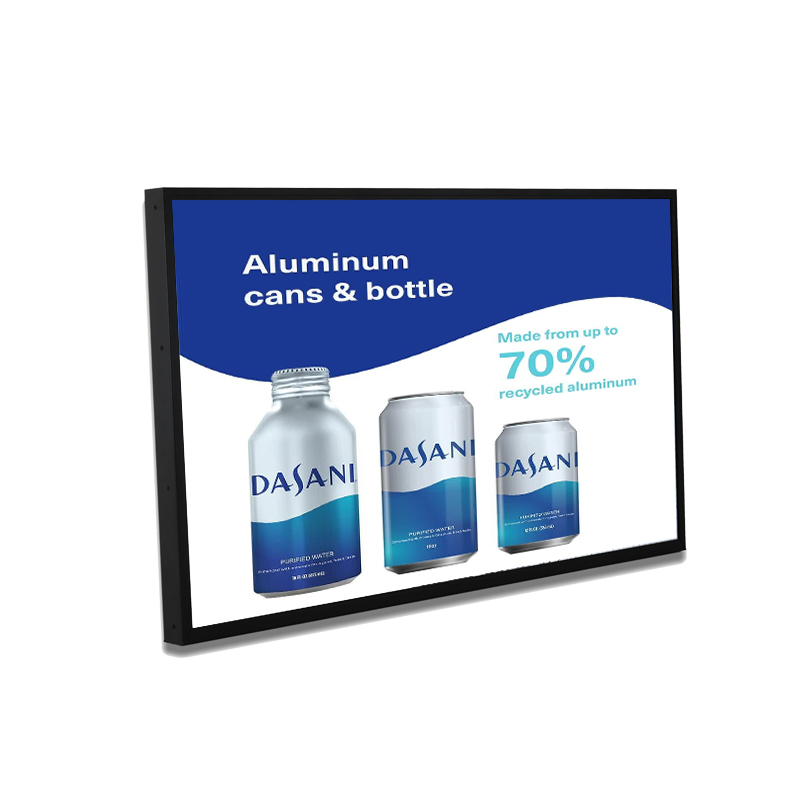

High brightness LCD panel

Description

  • The high brightness lcd panel with open frame design is with original LG industrial panel and our back-light design .
  • It's super slim bezel and with bracket installation ,which can be compatible for different enclosure or device used .

  • Different sizes from 21.5inch to 86inch available .

Features

  • High brightness 2000nits -3000nits
  • Light sensor to adjust the brightness automaticly

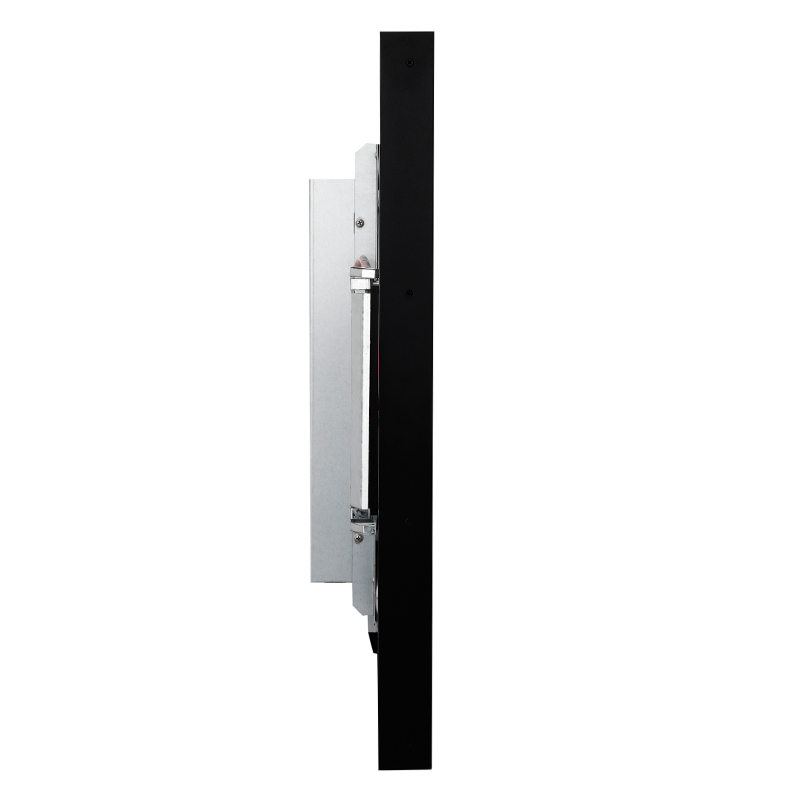

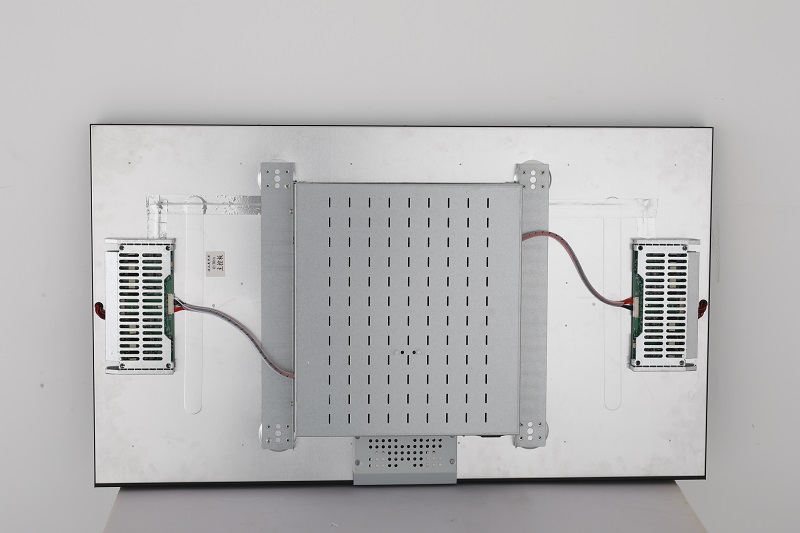

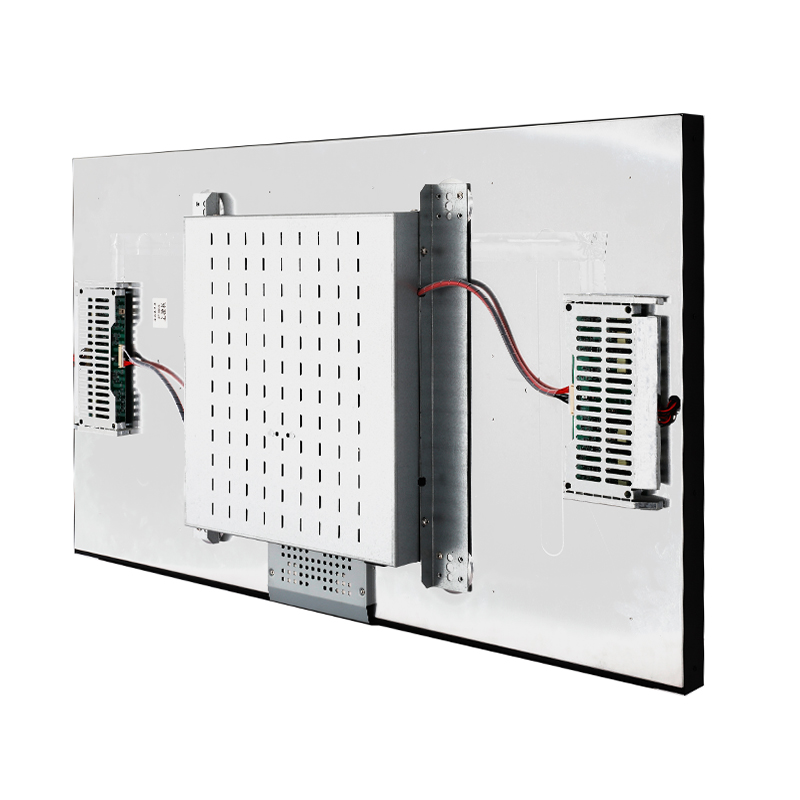

  • Open frame design with bracket ,more compatible .
  • Aluminum case can be better for heat spread.
  • Original LG/BOE industrial panel

Reference Dimension

  • 32″:732*431*47mm(H*W*D)

  • 43″:974*7567*55mm(H*W*D)

  • 50″:1106*641*55mm(H*W*D)

  • 55″:1248*717*57.5mm(H*W*D)

Detail specifications

Panel
Panel BrandLG or BOE
Panel size43″/49″/55″/65″
Resolution1080*1920/2160*3840
Aspect Ratio16:09
Brightness(nits)2000nits - 2500nits
Contrast Ratio1400:1
Gray to Gray Response Time(ms)8
Viewing Angel178°/178°
Backlight configurationWLED
Operating Life (hours)50000-60000h

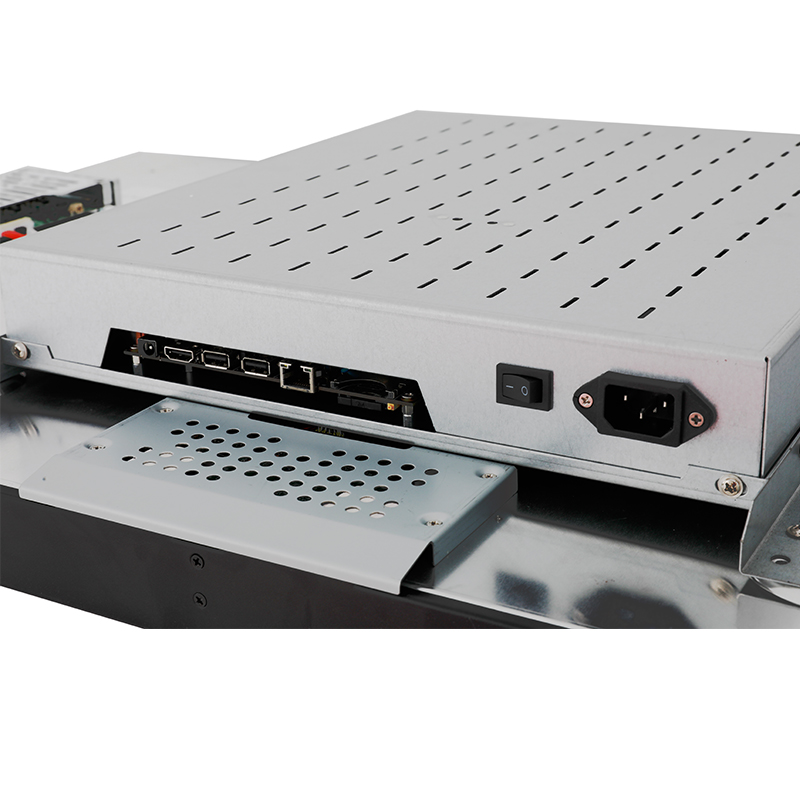

Media player for option
Operating SystemConfiguration
Storage
Driver boardHDMI, VGA, DVINone
StandaloneAndroid A20 (HDMI, USB)8G
AndroidAndroid RKD3288(HDMI, USB)2G+16G
WindowsIntel I3/I5/I7(HDMI, VGA, USB)4G+120G SSD
Power
Input VoltageAC100-240V, 50/60HZ
Enviroment
Operating EnviromentIndoor /Outdoor
Operating Temperature0°C~+55°C
Storage Temperature-10°C~+60°C
Humidity10%-80% RH Non-condensing
