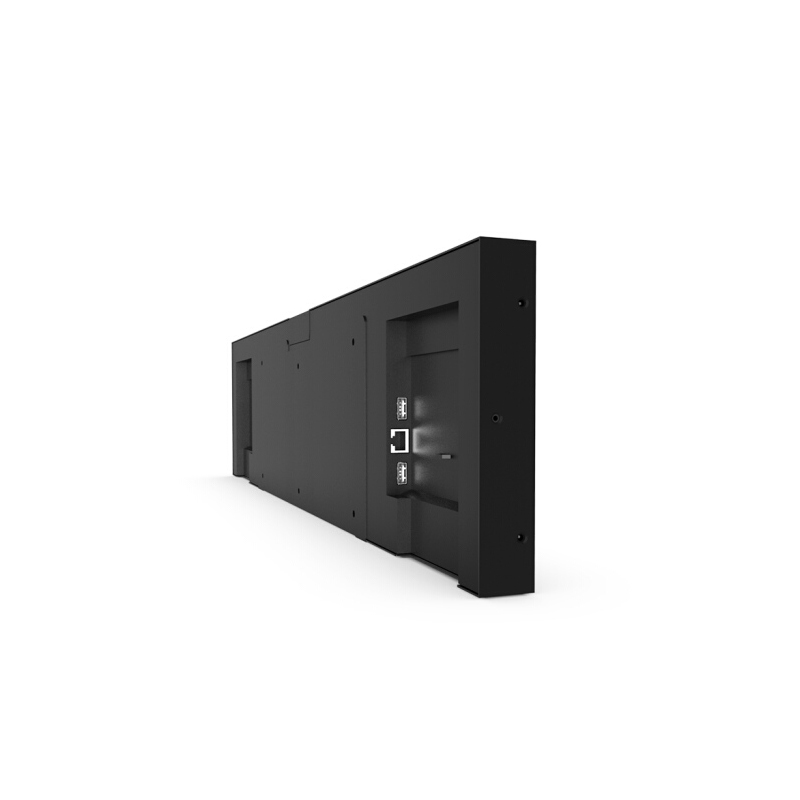

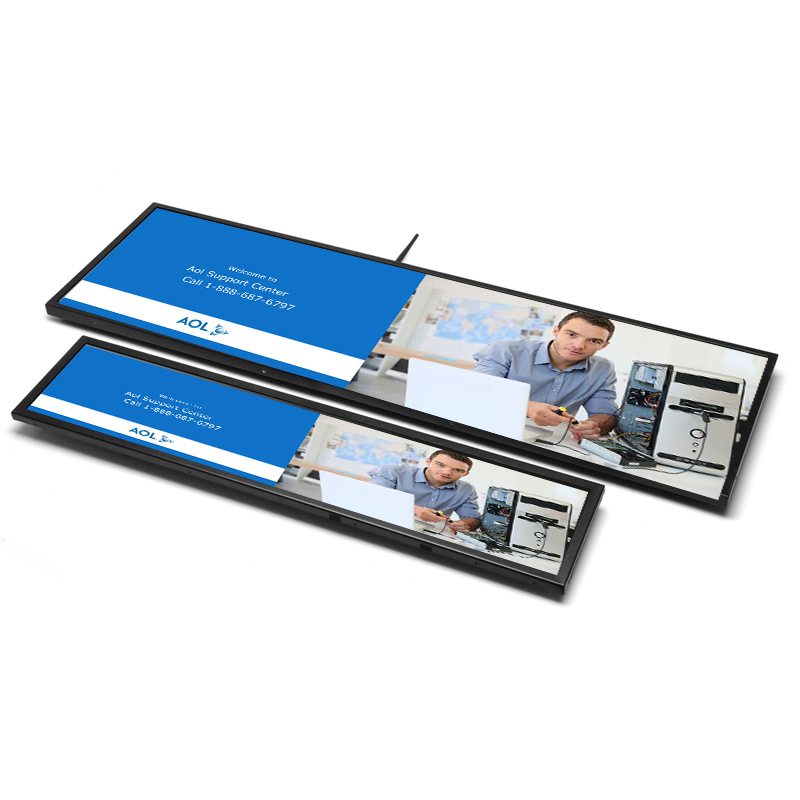

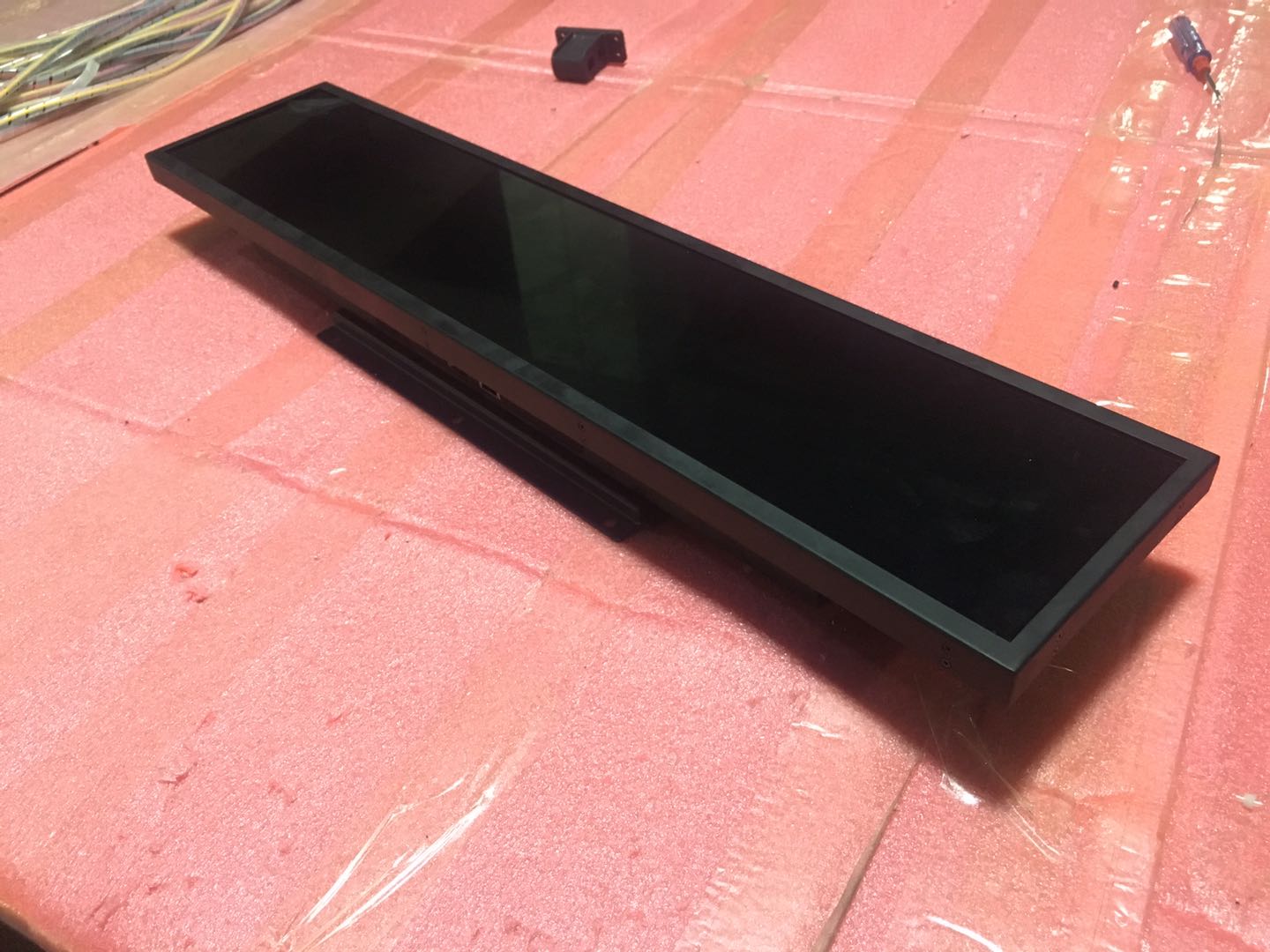

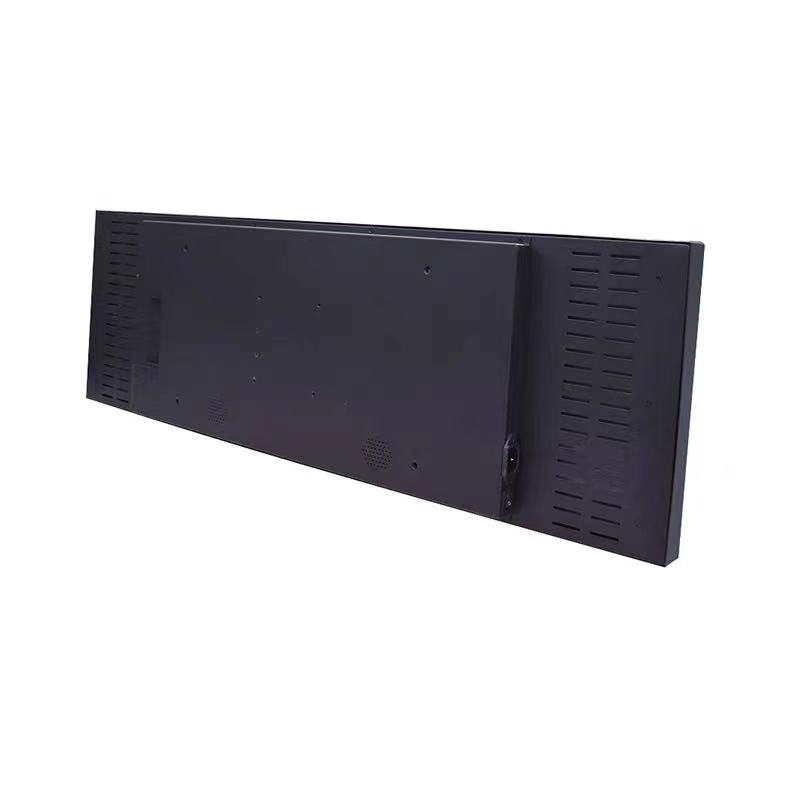

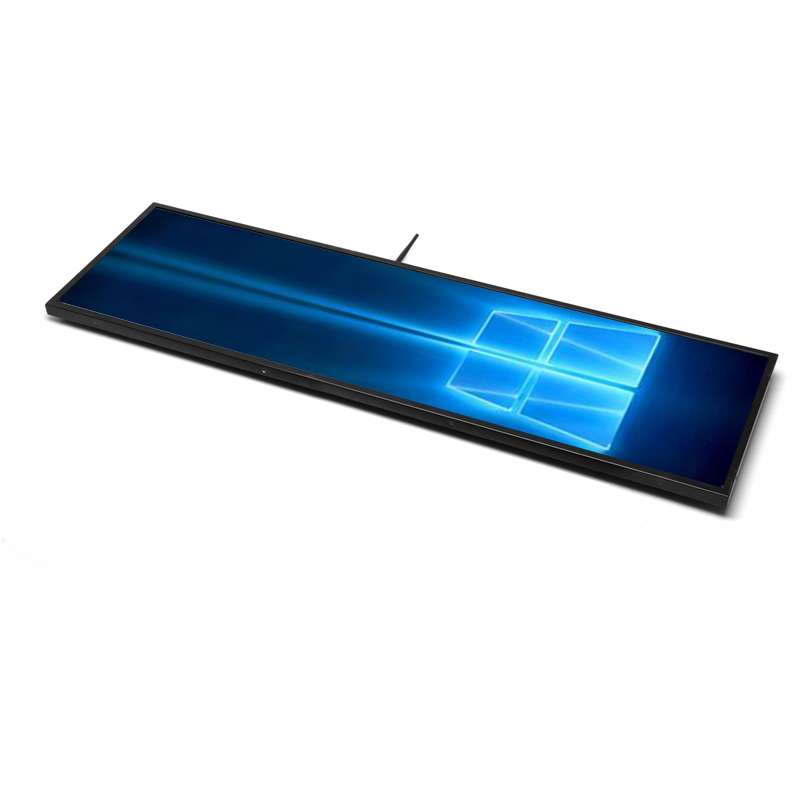

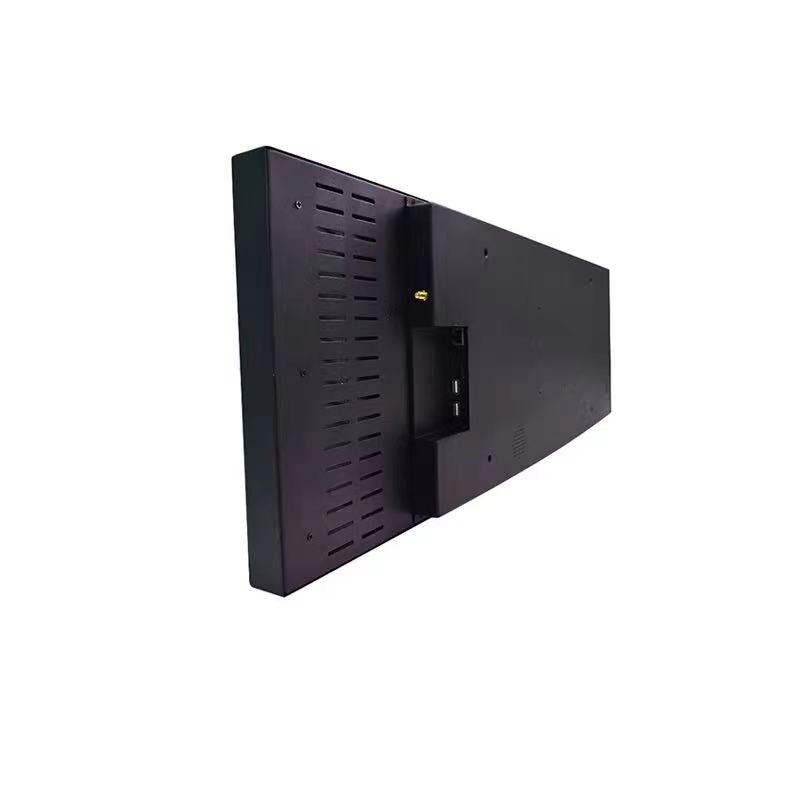

Stretch lcd advertising display RT-B6

Description

◆ Stretch ultra wide lcd display is cutted from regular screen panel for different shap lcd display required.

◆ High resolution make it clearly display strip advertisment on product shelf .

◆ HDMI input solution as monitor or connect with cms software through wifi for easily control.

◆ 19.1inch to 88inch make it more compatible for more location on wall ,customized size is available .


Features

◆ Original panel cutting from LG/BOE

◆ 500nits - 1000nits brightness make high bright to display

◆ Mini Android board is built-in ,support remotely management .

◆ Light and with bracket for comvenient installation.


Reference Dimension

19.1inch、19.5inch、23.1inch、24inch、24.5inch

28inch、28.5inch、35inch、36inch、37inch、37.7inch

38.5inch、40.6inch、43inch、43.8inch、48inch、49.5inch、

58inch、67.5inch、88inch


Request a Quote

Detail specifications

Panel
Panel BrandLG /BOE
Panel size

19.1''/19.5''/23.1''/24''24.5''/28''/28.5''/35''/36''/37''/37.7''/38.5''/40.6''/43''/43.8''/

48''/49.5''/58''/67.5''/88''

Resolution1920*110/1920*540/3840*1080
Aspect Ratio16:09
Brightness(nits)500nits - 1000nits
Contrast Ratio1400:1
Gray to Gray Response Time(ms)8
Viewing Angel178°/178°
Backlight configurationWLED
Operating Life (hours)50000-60000h
Media Player for option
Operating SystemConfigurationStorage
Driver boardHDMI, VGA, DVINone
StandaloneAndroid A20(HDMI, USB)8G
AndroidAndroid RK3288(HDMI, USB)2G+16G
Windows

Intel I3/I5/I7(HDMI, VGA, USB)

4G+120G SSD
Power
Input VoltageAC100-240V, 50/60HZ
Enviroment
Operating EnviromentIndoor
Operating Temperature0°C～+55°C
Storage Temperature-10°C～+60°C
Humidity10%-80% RH Non-condensing
